Highway Guardrail Roll Forming Machine , Hydraulic Metal Roof Tile Machine

Hangzhou bluesteel machine co., ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Highway Guardrail Roll Forming Machine , Hydraulic Metal Roof Tile Machine

  • 1
  • 2
  • 3

Brand Name : bluesteel

Model Number : bl

Certification : ce

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T or L/C

Supply Ability : 50sets /month

Delivery Time : 45days

Packaging Details : spare partsin wooden box,other plastic film cover

thickness range : 0.3-0.7mm

material stress : 235MPa 345MPa and 550MPa.

roller material : No.45steel

system : PLC control automatic system

Contact Now

Adjustable Metal Tile Machine For Sale Highway Guadrail Roll Forming Machine With Hydraulic Station

Technical data of steel corrgated roll forming machine

Suitable material

color steel sheet;0.8-1.2mm,

Working speed

about8-25m/min

stress

235MPa,345MPa,550MPa.

Power

Main motor power: 22.5 Kw(Depend on final design)

Hydraulic station power: 7.5Kw(Depend on final design)

Material of forming rollers

No.45 steel, plated with chrome on surface.

Material of cutter,pressing die

Cr12 mould steel with quench treatment, HRC58-60

Material of shaft

High quality 45# steel, Roller grinder milling.

Shaft diameter

72mm

Controlling system

Mitsubishi PLC & converter

Total weight of machine

About 9500KGS

Machine’s size

about 18m×1.8m× 1.5m (Depend on final design)

Layout drawing of machine

Highway Guardrail Roll Forming Machine , Hydraulic Metal Roof Tile Machine

Our Roll Forming Machine’s advantages

1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong

2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.

3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.

4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.

5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.

6. powerful driving system: big inch train,or gear box driving system.

6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.

producing process:

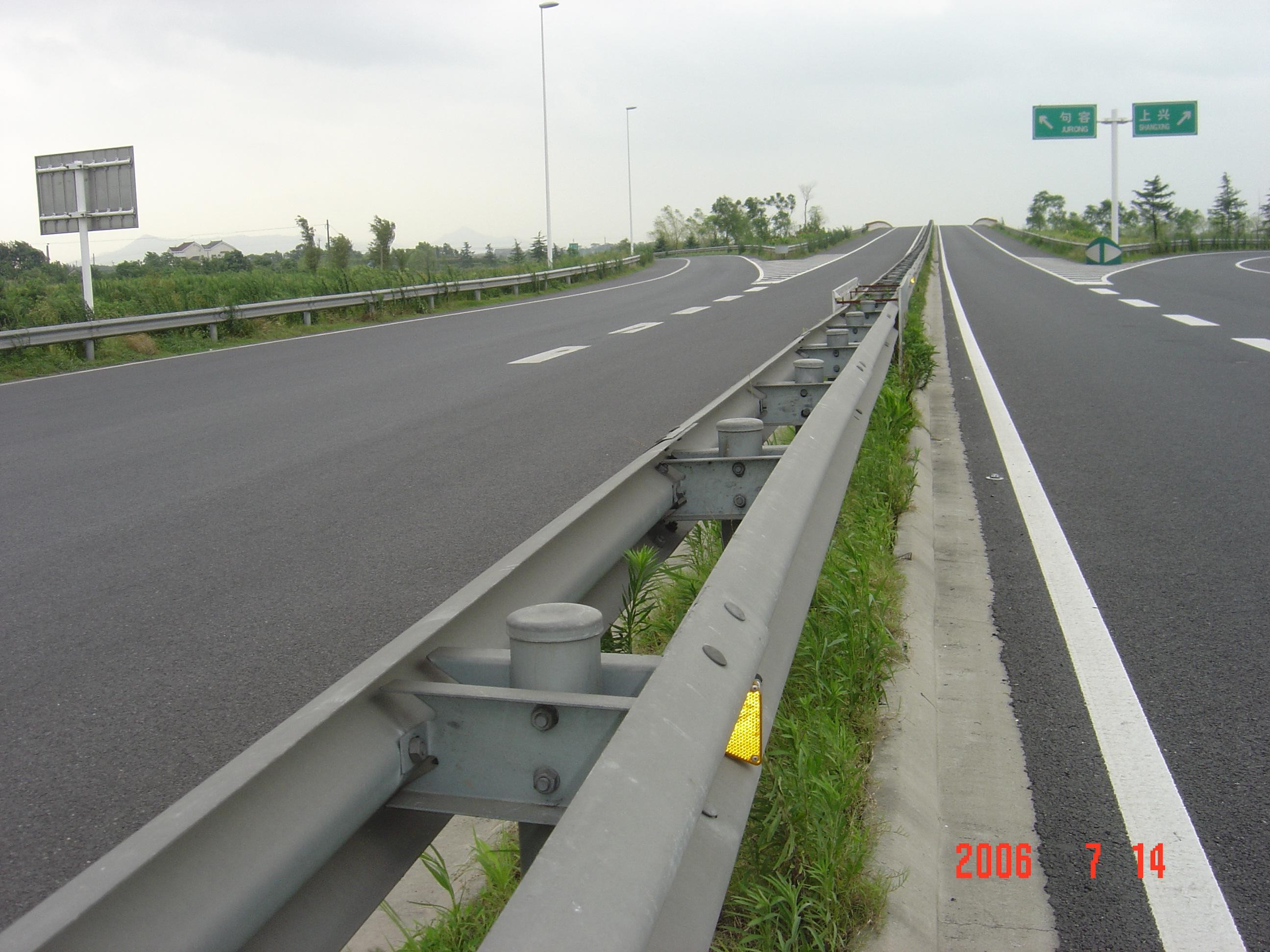

Product:

Highway Guardrail Roll Forming Machine , Hydraulic Metal Roof Tile Machine

We can also customize the products according to customer ' s requirements
