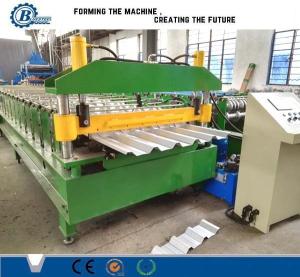

Automatic Roof Panel Roll Forming Machine

  • 1
  • 2
  • 3

Brand Name : bluesteel

Model Number : bl

Certification : ce

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T or L/C

Supply Ability : 50sets /month

Delivery Time : 45days

Packaging Details : spare partsin wooden box,other plastic film cover

thickness range : 0.3-0.7mm

material stress : 235MPa 345MPa and 550MPa.

roller material : No.45steel

system : PLC control automatic system

Contact Now

Hydraulic Automatic Trapezoidal Roof Panel Sheet Roll Forming Machine For Roofing

Feature Of Our Machines:

1. Our machines can uses galvanized steel sheet, colored armor plate or

aluminum plate as the material plate.

2. Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,

maintenance-free

3. We can make and design will kinds of roll forming machine according to customer's request.

TECHNICAL SPECIFICATION:

Line Specification

Suitable Material: Thickness: 0.4-0.6mm PPGI/AL, width as the design

Step Length: 100-400mm

Decoiler: 5T/8T/10 Decoiler

Forming Station: 10-30 stations up to the profile

Forming Speed: Max 30 m/min

Max Working Speed: 5.5M/min

Panel Run Out: 12m Auto Stacker

Total Power: About 30 KW up to final design

Total Installation Size: (40-60) X 5 m up to final design

Our Roll Forming Machine’s advantages

1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong

2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.

3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.

4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.

5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.

6. powerful driving system: big inch train,or gear box driving system.

6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.

producing process:

Product:

We can also customize the products according to customer ' s requirements

Application:

Packaging Detail of steel sheet roll forming machine :

1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
