Brand Name : bluesteel
Model Number : bl
Certification : ce
Place of Origin : China
MOQ : 1
Price : negotiable
Payment Terms : T/T or L/C,
Supply Ability : 50sets /month
Delivery Time : 45days
Packaging Details : spare parts in wooden box,other plastic film cover
thickness range : 0.3-0.7mm
material stress : 235MPa 345MPa and 550MPa.
roller material : No.45steel
system : PLC control automatic system
1. Our machines can uses galvanized steel sheet, colored armor plate or
aluminum plate as the material plate.
2. Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-
3. We can make and design will kinds of roll forming machine according to customer's request.
Technical data of steel corrgated roll forming machine
color steel sheet;0.3-07mm,
Main motor power: 5.5 Kw(Depend on final design)
Hydraulic station power: 4Kw(Depend on final design)
Material of forming rollers
No.45 steel, plated with chrome on surface.
Material of cutter,pressing die
Cr12 mould steel with quench treatment, HRC58-60
Material of shaft
High quality 45# steel, Roller grinder milling.
Mitsubishi PLC & converter
Total weight of machine
about 18m×1.8m× 1.5m (Depend on final design)
Layout drawing of machine
Our Roll Forming Machine’s advantages
1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.
5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.
6. powerful driving system: big inch train,or gear box driving system.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
We can also customize the products according to customer ' s requirements

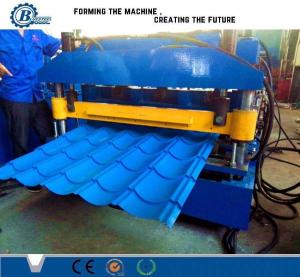

PLC Control Tile Roll Forming Machine Images
