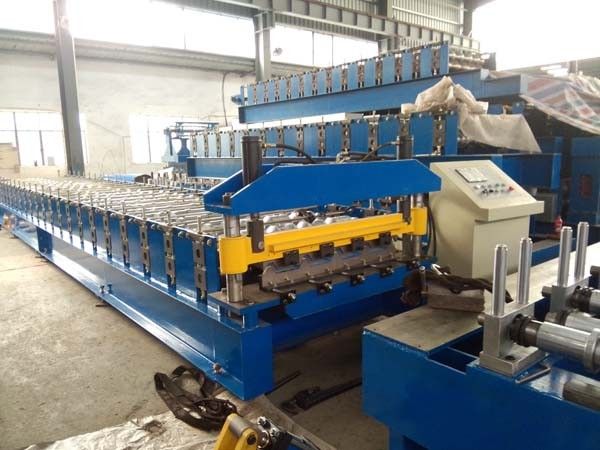

Individual Steel Struction Use Roof Panel Roller Former IBR Roof Panel Roll Forming Machine For Sale
Usage Of Roof Panel :
The roofing panel machines can produce various of steel roof and wall panel, it is a new building materials,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium,exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short buildi-ng period , beauty, light weight but high strength.
Feature Of Our Machines:
1.Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material
plate.
2. Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,
maintenance-free
3. We can make and design will kinds of roll forming machine according to customer's request.
roll forming machine main parameter table.
| Suitable material | color steel sheet;0.3-0.7mm, |
| Working speed | about10-25m/min |
| stress | 235MPa,345MPa,550MPa. |
| Power | Main motor power: 5.5 Kw(Depend on final design) |
| Hydraulic station power: 4Kw(Depend on final design) |
| Material of forming rollers | No.45 steel, plated with chrome on surface. |
| Material of cutter,pressing die | Cr12 mould steel with quench treatment, HRC58-60 |
| Material of shaft | High quality 45# steel, Roller grinder milling. |
| Shaft diameter | 72mm |
| Controlling system | Mitsubishi PLC & converter |
| Total weight of machine | About 9500KGS |
| Machine’s size | about 18m×1.8m× 1.5m (Depend on final design) |
producing process:
Product:
We can also customize the products according to customer ' s requirements
Application:
Packaging Detail of steel sheet roll forming machine :
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
